What Is the REDMI K90 Max?
The REDMI K90 Max is Xiaomi’s most direct answer to a problem every mobile gamer knows: flagship chips throttle. After 20 to 30 minutes of intense load, even the fastest Android processors drop to 60–80% of peak performance to keep temperatures survivable. Software scheduling, vapor chambers, and graphite layers help – but they cannot repeal thermodynamics.
The K90 Max takes a different approach. It installs an actual spinning fan inside the chassis, making it the first phone in the Xiaomi/Redmi lineup to use active mechanical cooling. Paired with a MediaTek Dimensity 9500, an 8550mAh silicon-carbon battery, and a 6.83-inch 165Hz 1.5K AMOLED display, the result is a gaming phone built around one core promise: performance that lasts as long as your session does.
Starting at ¥3,499 (~$483) in China, the K90 Max is not cheap. But for what it offers in sustained output, the value case is easy to make.
Design and Build

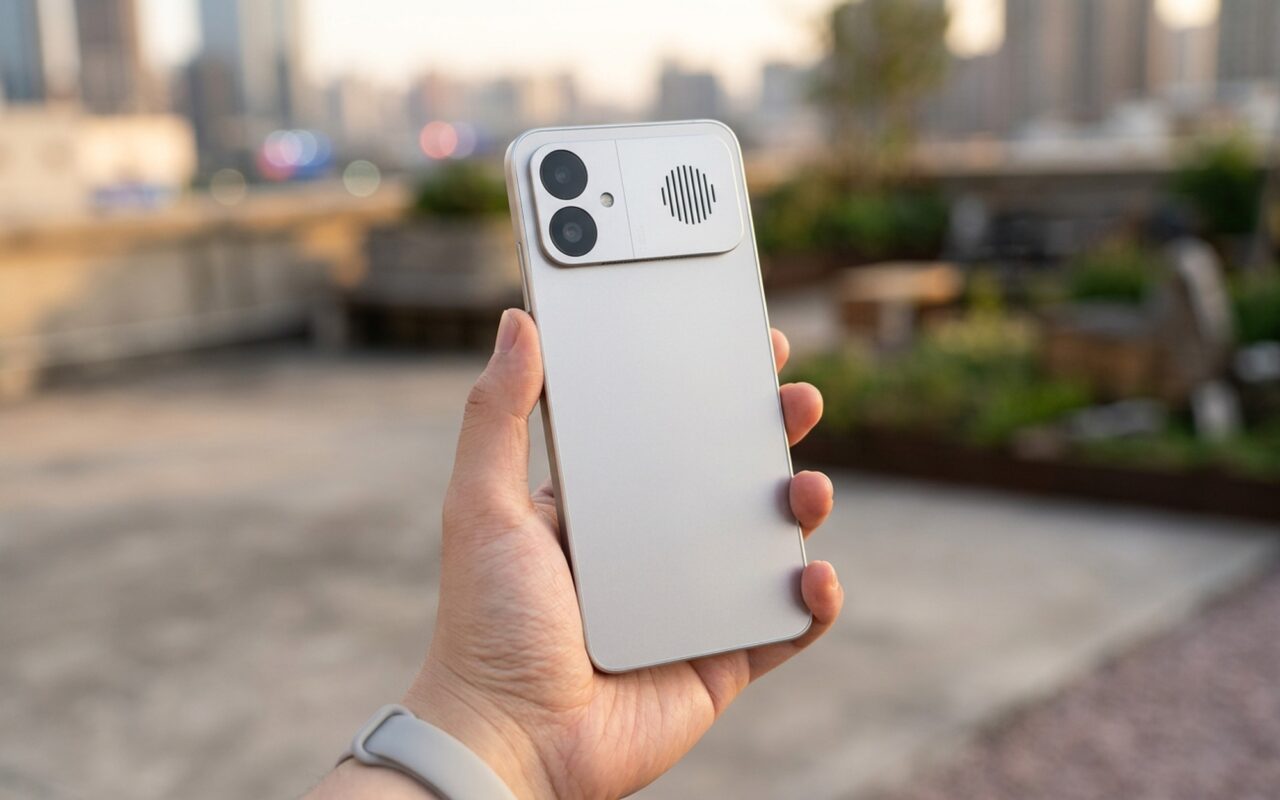

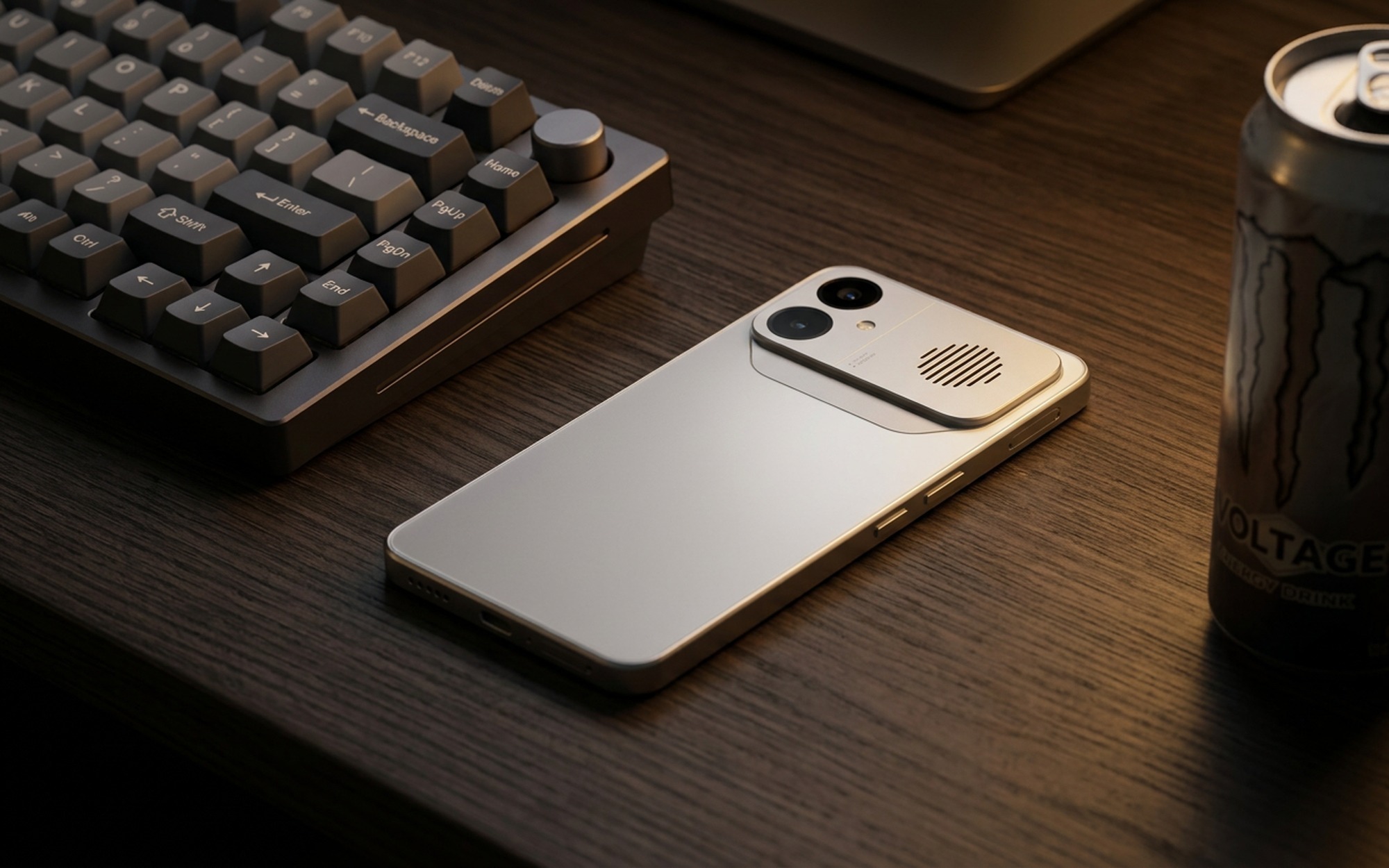

Pick up the K90 Max and the fan vent grille in the upper corner of the rear panel immediately tells you what this phone is about. The Space Silver colorway gives it a machined-metal character that stands apart from glossy consumer flagships. Sky Blue and Shadow Black offer alternatives for those who want something less industrial.
The metal rear housing is built with high single-piece integration. At 8.18mm thick and 227g, the K90 Max is heavier than a slim daily driver – but no worse than competing gaming phones, and meaningfully slimmer than most.
The engineering highlight is waterproofing. Most active-cooling phones sacrifice water resistance to accommodate fan intake vents. The K90 Max carries IP66, IP68, and IP69 ratings for the whole device – dust sealing, submersion protection, and high-pressure hot water resistance. The fan component itself is separately certified IPX8 and IPX9. For gamers who play through long, warm sessions or in less-than-ideal conditions, this combination is genuinely unusual in the category.
Display
The 6.83-inch AMOLED panel covers the gaming essentials and then some:
- Resolution: 2772×1280 (1.5K), with a dedicated D2 display chip for GPU-independent rendering
- Refresh rate: 165Hz
- Touch sampling: 480Hz multi-touch, 3500Hz instantaneous peak
- Brightness: 3500 nits peak local, 1 nit minimum
- Color: 100% DCI-P3, Dolby Vision, HDR10+, DC dimming
The 3500Hz instantaneous touch sampling is worth unpacking. This figure measures the system’s reaction speed to a single touch input – how quickly a tap registers and propagates upstream – not the sustained polling rate. At 3500Hz the input latency is imperceptibly low. Combined with 165Hz frame delivery and per-game D2 rendering optimizations that push 165 FPS at 1.5K resolution in select titles, the display is among the most responsive in mobile gaming.
Active Cooling: What the Fan Actually Does
The K90 Max houses an 18.1mm active spinning fan integrated with simulated vortex air ducts and metal guide fins. Total thermal infrastructure includes a 6000mm² ice-sealed loop pump, 31,589mm² total cooling area, and over 12,000mm² of graphite coverage. The fan is rated for 50,000 operating hours – roughly six years of daily eight-hour gaming sessions – and backed by a six-year warranty.
The fan runs in three selectable modes:
| Mode | Behavior |
|---|---|
| Silent | Passive cooling only, fan off |
| Smart | Fan activates automatically on temperature threshold |
| Maximum | Fan runs continuously at full speed |
The results from extended testing are unambiguous. The K90 Max completed a 2-hour extreme gaming session without once exceeding 37°C, finishing at 34.8°C. That is a temperature that most passively-cooled flagships cannot sustain past the first 30 minutes of peak load. As AndroidHeadlines notes, the K90 Max is one of the first Redmi phones to deliver sustained performance equivalent to dedicated gaming hardware.
On AnTuTu v11 it scores over 4,161,000 points – and unlike most benchmark readings, these represent sustained output under continuous load. Geekbench 6 shows 3,513 single-core and 10,711 multi-core. Per XimiTime’s thermal testing, zero thermal throttling was observed during heavy loads with the fan engaged.
Gaming Performance
The AI Gaming Display D2 chip (12nm process) works alongside the Dimensity 9500 to handle rendering independently, relieving pressure on the main SoC during intensive graphics workloads. A 400Hz gyroscope benefits shooters and motion-sensitive titles where fine positional accuracy determines outcomes.
Per-game software optimization enables certain titles to hit 165 FPS at 1.5K resolution – a combination that requires both the thermal headroom of a non-throttled chip and a panel capable of displaying it. In testing with Honor of Kings and Arknights Endgame, gameplay remained smooth throughout extended sessions with no noticeable frame drops or stuttering.
The K90 Max’s competitive position among active-cooling gaming phones:
- vs. RedMagic 11 Pro: RedMagic also ships an internal fan, but its aggressively gamer-branded industrial design makes it harder to carry as a daily phone. The K90 Max’s IP68 rating gives it a real-world durability edge. As Gizmochina reported at launch, the K90 Max positions itself as an accessible rival to RedMagic at a lower price.
- vs. ASUS ROG Phone 9: The base ROG Phone 9 relies on passive cooling; active cooling requires the separately sold AeroActive Cooler 9 accessory. The K90 Max delivers integrated fan cooling from the box, at a lower starting price.
Battery and Charging
The 8550mAh silicon-carbon battery is the most capacious cell currently shipping in a flagship-tier phone. Silicon-carbon chemistry packs higher energy density than conventional lithium-ion, enabling this capacity without a proportional jump in weight.
In real-world terms:
- Light users: Comfortably two full days between charges
- Heavy gamers: 6–8+ hours of continuous gaming on a single charge
- Overnight: Plug in at the end of the day, start the next one fully charged with no anxiety
Charging is rated at 100W wired, with real-world sustained output averaging around 57W with third-party adapters. Full 0–100% takes approximately 69 minutes – fast for the capacity, though the gap between the rated and real-world speeds is worth knowing when planning around a standard charger. 22.5W reverse charging handles earbuds, smartwatches, or a colleague’s dead phone.
Camera System
The camera hardware reflects the K90 Max’s design priorities – gaming performance first, photography second:
- Main: 50MP “Light Hunter 800 CMOS,” 1/1.55-inch sensor, F1.68 aperture, 6P lens, optical image stabilization
- Ultra-wide: 8MP, 1/4-inch, F2.2, 5P lens
There is no telephoto lens. For a phone at this price in 2026, that is a clear omission – competing flagships in this bracket often include a 3x or 5x periscope zoom. The 50MP main sensor with OIS handles daylight and indoor photography competently, and the large F1.68 aperture provides genuine low-light capability. But camera versatility is simply not what the K90 Max is engineered for.
Pricing and Configurations
| Configuration | Full Price | After Subsidy |
|---|---|---|
| 12GB + 256GB | ¥3,499 (~$483) | ¥3,199 (~$441) |
| 12GB + 512GB | ¥3,999 (~$551) | ¥3,699 (~$510) |
| 16GB + 256GB | ¥3,799 (~$524) | ¥3,499 (~$483) |
| 16GB + 512GB | ¥4,299 (~$593) | ¥3,999 (~$551) |
| 16GB + 1TB | ¥4,999 (~$690) | ¥4,699 (~$648) |
The 16GB + 512GB at ¥3,999 (or ¥3,699 with the government subsidy) is the value midpoint – maximum RAM for sustained app retention, practical storage without hitting the ¥4,999 ceiling. For pure gaming use, 12GB + 256GB at ¥3,499 is sufficient if storage usage is light.
Verdict
The REDMI K90 Max is a phone with a clear purpose and honest engineering. Its active fan solves a real problem – sustained performance under continuous gaming load – that software optimization alone cannot fully address. The 8550mAh battery and IP68 waterproofing add daily-driver credibility that competing gaming phones in this category often sacrifice.
The trade-offs are known going in: no telephoto camera, 227g weight, audible fan on maximum mode, and China-only availability for now. None of those are hidden.
For the mobile gamer who plays demanding titles for hours at a stretch, the K90 Max delivers something genuinely differentiated: peak Dimensity 9500 performance that does not fade twenty minutes in. At ¥3,499 starting, it makes that proposition accessible without requiring a flagship-tier budget. If global availability is confirmed, it will be one of 2026’s most compelling gaming phone recommendations.
- Built-in active fan holds temps below 37°C across 2-hour marathon gaming sessions
- Massive 8550mAh silicon-carbon battery with all-day-plus endurance for heavy gamers
- Dimensity 9500 scores 4.16M+ AnTuTu with zero thermal throttling under sustained load
- IP66/IP68/IP69 waterproofing retained despite housing a mechanical spinning fan inside
- 165Hz 1.5K AMOLED display with 3500 nits peak brightness and 3500Hz instantaneous touch
- Camera system is modest — 50MP main plus 8MP ultrawide only, no telephoto lens
- 227g weight is noticeable for single-hand use outside gaming sessions
- Launched in China only; global availability and 5G band coverage unconfirmed as of May 2026
- Fan is audible in quiet environments when running on maximum cooling mode
Frequently Asked Questions
How does the REDMI K90 Max cooling fan work, and is it waterproof?
The K90 Max uses an 18.1mm active spinning fan paired with a 6000mm² ice-sealed loop pump and over 31,589mm² of total thermal area. The fan has three modes — silent, smart, and maximum — and kept the phone below 37°C throughout a 2-hour extreme gaming test, finishing at 34.8°C. Remarkably, the fan itself is rated IPX8/IPX9, while the overall phone carries IP66/IP68/IP69 waterproofing.
Is the REDMI K90 Max worth buying in 2026?
Yes, if sustained gaming performance is your priority. The Dimensity 9500 scores over 4.16 million on AnTuTu with zero thermal throttling over two hours thanks to the built-in fan. Starting at ¥3,499 (~$483), it offers IP68 waterproofing and an 8550mAh battery that rivals costing more cannot match. The main trade-off is an average camera system with no telephoto lens.
How long does the REDMI K90 Max battery last during gaming?
The 8550mAh silicon-carbon battery is the largest capacity cell on any current flagship. Light-to-moderate users will comfortably see two full days, while heavy gamers can expect 6–8+ hours of continuous gaming on a single charge. With 100W wired charging, a full top-up from zero takes approximately 69 minutes.
What makes phones with built-in fans better for sustained gaming performance?
Without active cooling, mobile chips thermally throttle within 20–30 minutes under peak load, dropping to 60–80% of maximum performance to avoid overheating. A built-in fan maintains continuous airflow, keeping chip temperatures low enough to sustain peak performance indefinitely. The K90 Max demonstrated this by completing a 2-hour gaming session at just 34.8°C without any throttling.
What are the REDMI K90 Max specs and starting price?
The K90 Max runs MediaTek Dimensity 9500 with up to 16GB LPDDR5X RAM and 1TB UFS 4.1 storage. Display is a 6.83-inch 1.5K AMOLED at 165Hz. Battery is 8550mAh with 100W wired charging. It starts at ¥3,499 (~$483) for the 12GB + 256GB model in China, rising to ¥4,999 (~$690) for 16GB + 1TB.
